Today we’ll learn about Lono Configs. Lono has 2 types of configs: Params and Variables. Params allow you to affect the templates at run-time. Variables configs allow you to affect the templates at compile-time. We’ll cover both.

Note: Source Code for this tutorial is available at: tongueroo/lono-cloudformation-examples

Structure

First, let’s take a look at the location and structure of blueprints and configs.

blueprints
└── demo
configs
└── demo
    ├── params
    │   ├── development.txt
    │   └── production.txt
    └── variables
        ├── development.rb
        └── production.rb

Note that the blueprints are in a separate folder from the configs. The configs/demo folder contains config values for the blueprints/ec2 blueprint.

Params vs Variables

Here’s a diagram to help explain the difference between Params and Variables.

Params

Params are traditional CloudFormation parameters. They are how most CloudFormation templates are dynamically configured. For example, you can use an InstanceType parameter to control the instance size to launch: m5.large, m5.small, etc. Parameters can also be combined with more advanced CloudFormation constructs like intrinsic functions and conditions to build programming logic. Here’s an example of Params.

configs/demo/params/development.txt:

InstanceType=t3.small

Lono Params are formatted with env-like values. It’s typically easier to work with than the standard CloudFormation parameters JSON form. It also supports ERB and can reference variables, which we’ll cover next.

Variables

Though you can get pretty far with parameters, sometimes they do not suffice. In this case, you can use variables for more control. Variables allow you to compile different templates entirely. Learning how to use variables enable you to use the full power of the Ruby programming language: if statements, loops, etc. Here’s a simple example of variables.

configs/demo/variables/development.rb:

@desc = "my description for the #{Lono.env} environment"

Example

Continuing with our example from the last tutorial, we’ll use the example configs files from above. The template already uses InstanceType as a parameter. So we only need to add the @desc variables to the template. The CloudFormation description section cannot reference parameters, so a variable is required if you wish to configure it dynamically. It should look like this:

blueprints/demo/app/templates/demo.rb

description @desc

We’re ready to deploy the updated example.

$ lono cfn deploy demo
Deploy demo stack...
Generating CloudFormation templates for blueprint demo:
  output/demo/templates/demo.yml
Uploading app/files...
Uploading CloudFormation templates...
Uploaded: output/demo/templates/demo.yml to s3://lono-bucket-usp0x9l7fhr4/development/output/demo/templates/demo.yml
Templates uploaded to s3.
Generating parameter files for blueprint demo:
  output/demo/params/development.json
Using template: output/demo/templates/demo.yml
Using param: configs/demo/params/development.txt
Generating CloudFormation source code diff...
Running: colordiff /tmp/existing_cfn_template.yml /home/ec2-user/tongueroo/lono-cloudformation-examples/tutorial-3/output/demo/templates/demo.yml
3c3
< Description: Demo stack
---
> Description: my description for the development environment
Parameters passed to cfn.create_change_set:
---
change_set_name: changeset-20190511040909
stack_name: demo
parameters:
- parameter_key: InstanceType
  parameter_value: t3.small
template_url: https://lono-bucket-usp0x9l7fhr4.s3.us-west-2.amazonaws.com/development/output/demo/templates/demo.yml
template_body: 'Hidden due to size... View at: output/demo/templates/demo.yml'
Generating CloudFormation Change Set for preview......
CloudFormation preview for 'demo' stack update. Changes:
Modify AWS::EC2::Instance: Instance i-039f6d968eaf48155
Modify AWS::EC2::EIP: IpAddress 44.225.7.25
Are you sure you want to want to update the demo stack with the changes? (y/N)
y
Updating demo stack via change set: changeset-20190511040909
Waiting for stack to complete
04:09:22AM UPDATE_IN_PROGRESS AWS::CloudFormation::Stack demo User Initiated
04:09:26AM UPDATE_IN_PROGRESS AWS::EC2::Instance Instance
04:10:28AM UPDATE_COMPLETE AWS::EC2::Instance Instance
04:10:33AM UPDATE_IN_PROGRESS AWS::EC2::EIP IpAddress
04:10:49AM UPDATE_COMPLETE AWS::EC2::EIP IpAddress
04:10:51AM UPDATE_COMPLETE_CLEANUP_IN_PROGRESS AWS::CloudFormation::Stack demo
04:10:52AM UPDATE_COMPLETE AWS::CloudFormation::Stack demo
Stack success status: UPDATE_COMPLETE
Time took for stack deployment: 1m 31s.
$

Check the Parameters on the CloudFormation console, to confirm that the Description section is dynamically set.

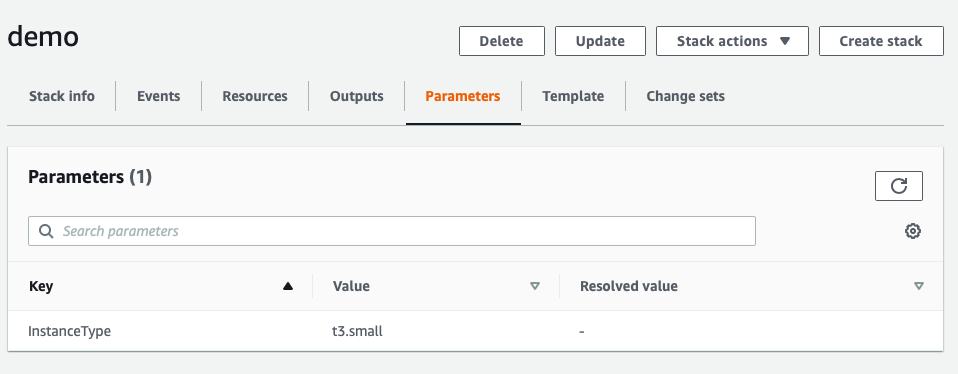

You can also check the CloudFormation parameters to see that a customized InstanceType=t3.small was passed.

We’ve confirmed that the InstanceType parameter was passed in and also that the CloudFormation Description was dynamically set.

Cleanup

Let’s destroy the resources so we do not get charged more money than we have to. This is simple.

lono cfn delete demo

Summary

This was a brief introduction to two types of Lono Configs: Params and Variables. We learned how Lono Params are a little easier on the eyes with the env-like format. We also learned a little bit about Lono Variables and how they can be used to compile down different templates. We kept the variable example simple because this is an introduction, in a later post we’ll cover the full power of variables more thoroughly with a loop example. In the next post, we’ll talk about Lono Layering.
